Street Lamp¶
Overview¶

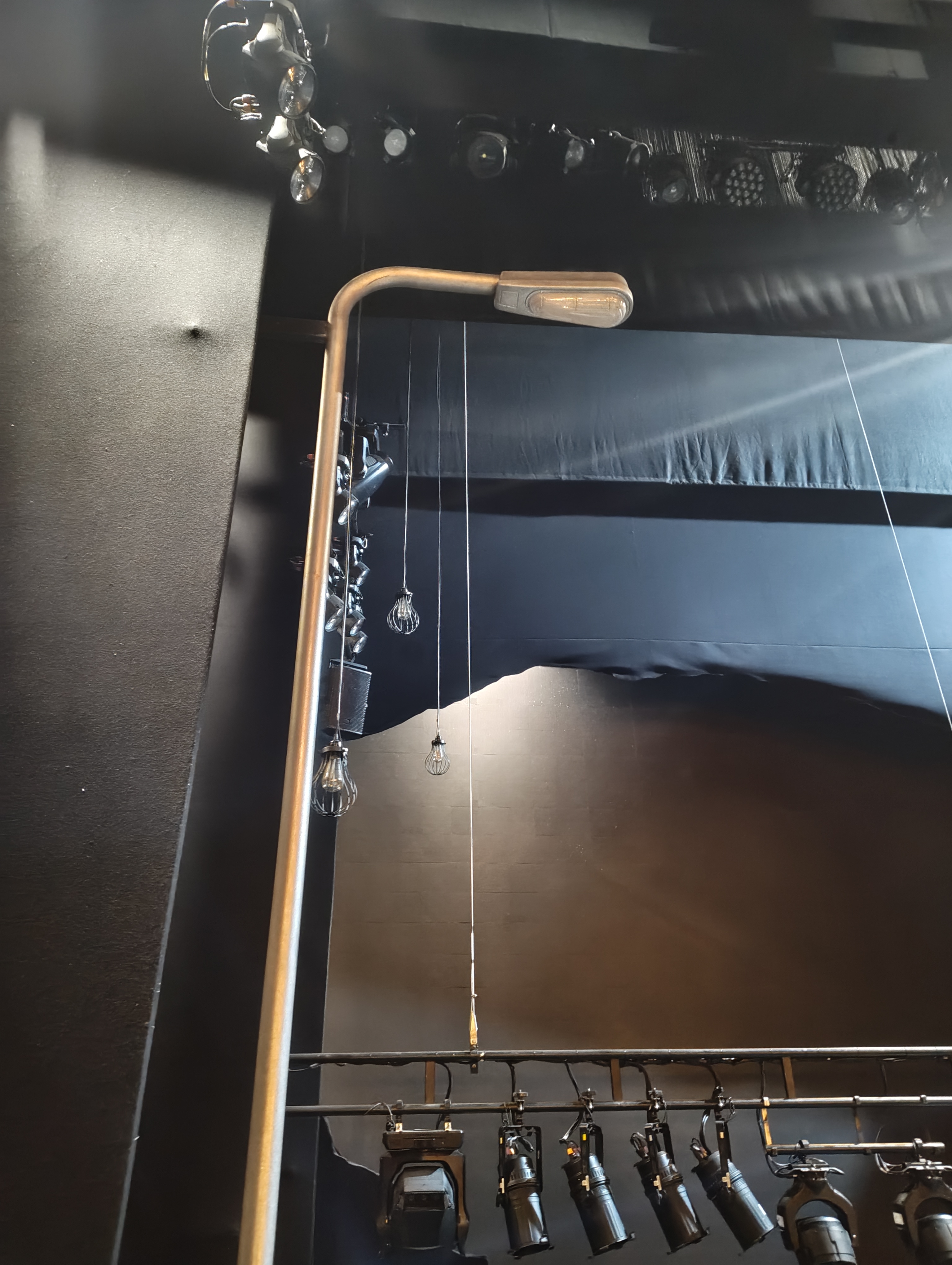

The Street Lamp is a full-size sliding street lamp in SR Bay 3. It is RGBW LED tape with a diffused cover, powered by an Electric Foundry EF1K LED Driver on the SR Fly Floor.
Channels & Addressing¶
- Channel: 761
- Fixture Type: LED RGBW 16B (Generic)
- Universe/Address: 12/321–328
- Parameters: Intensity, Red, Green, Blue, White (RGBW 16-bit)
Power & Control¶
| Power Source | SR Fly Floor |
| Driver / PSU | Electric Foundry EF1K - LED Driver |
| DMX Source | SR Fly Floor |
| Cable Type | 5 core cable drop |
Note

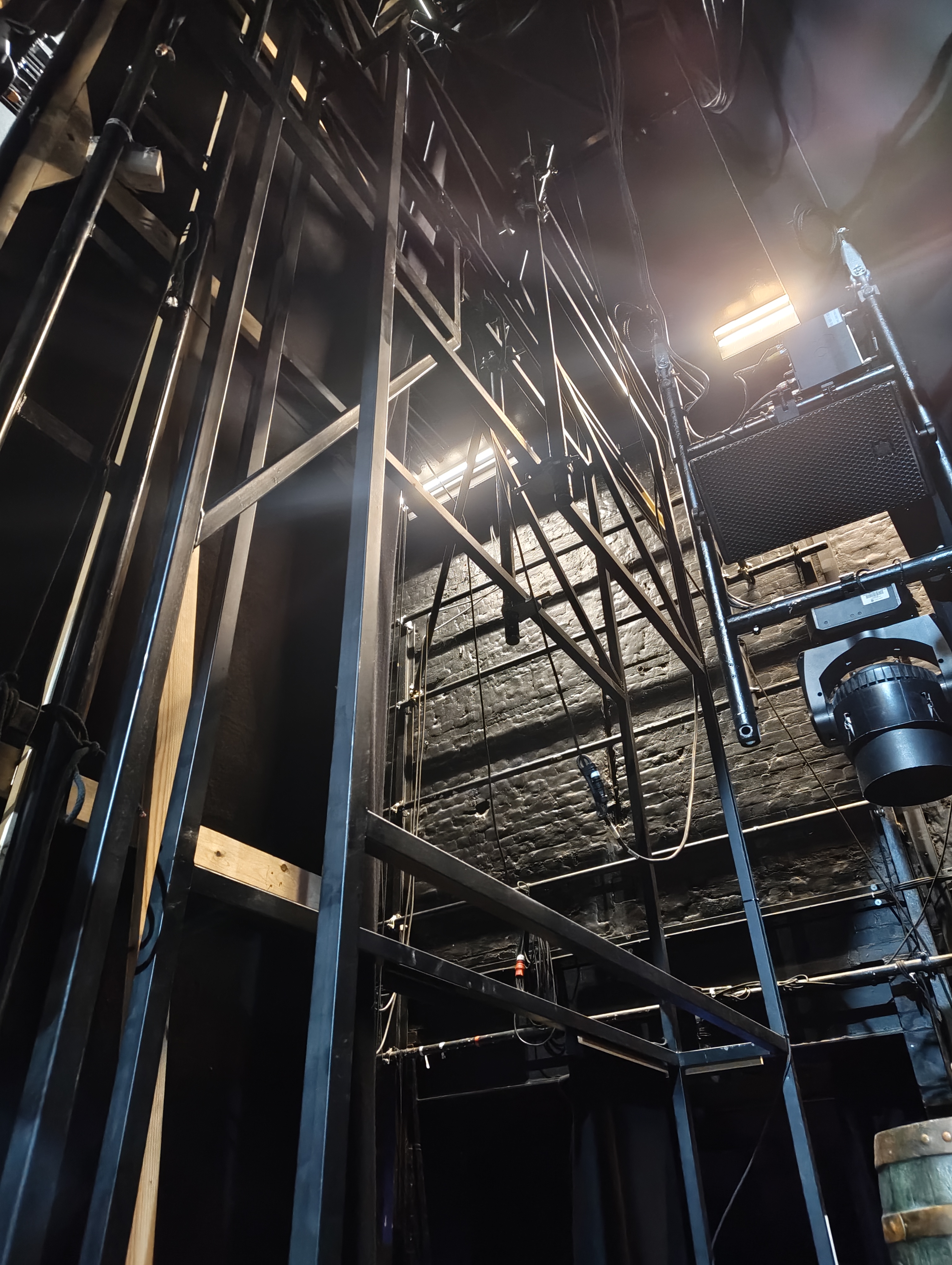

The drop of the 5 core cable has enough swag to allow the Street Lamp to be slid all the way on stage in its gantry.

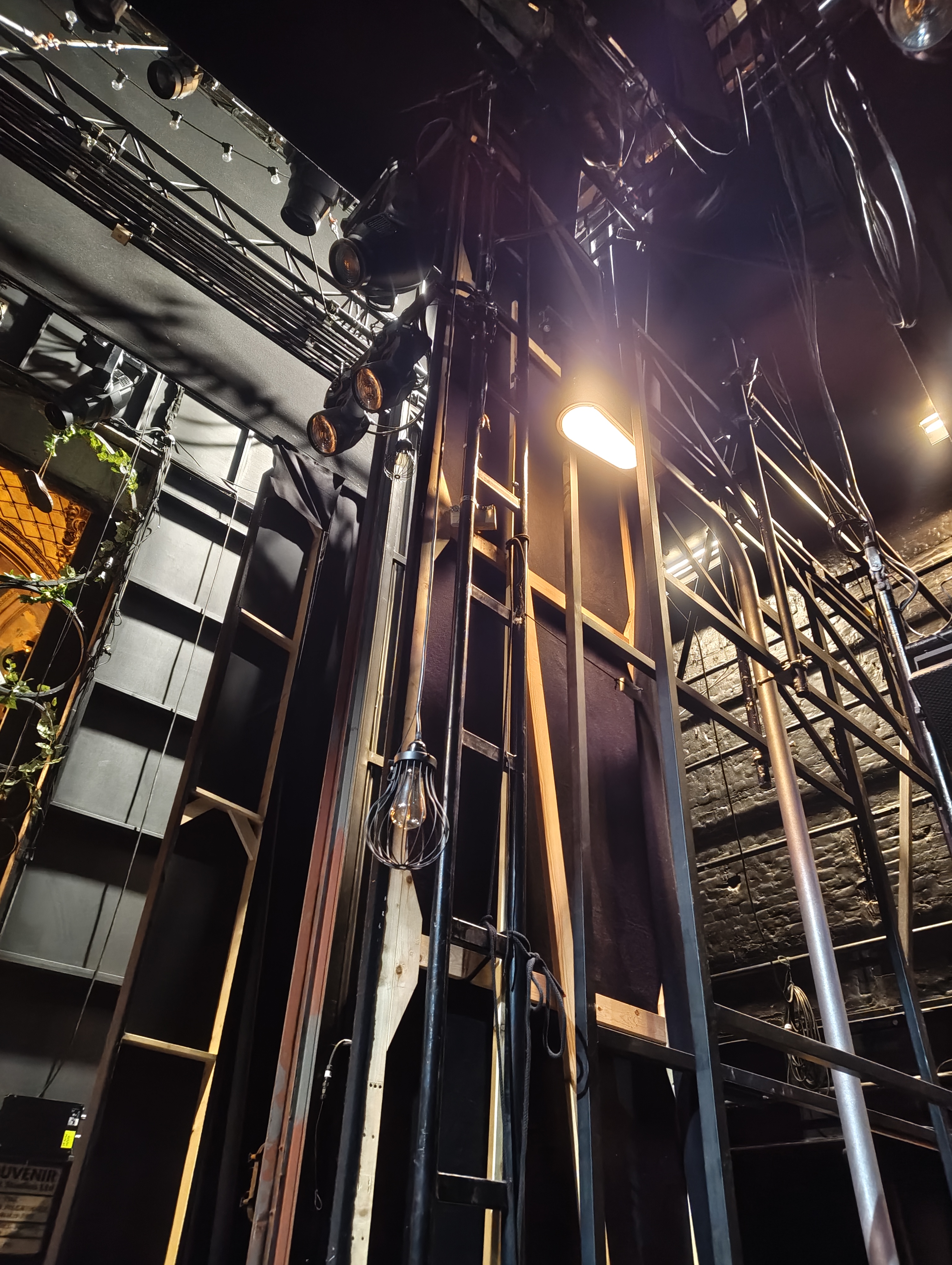

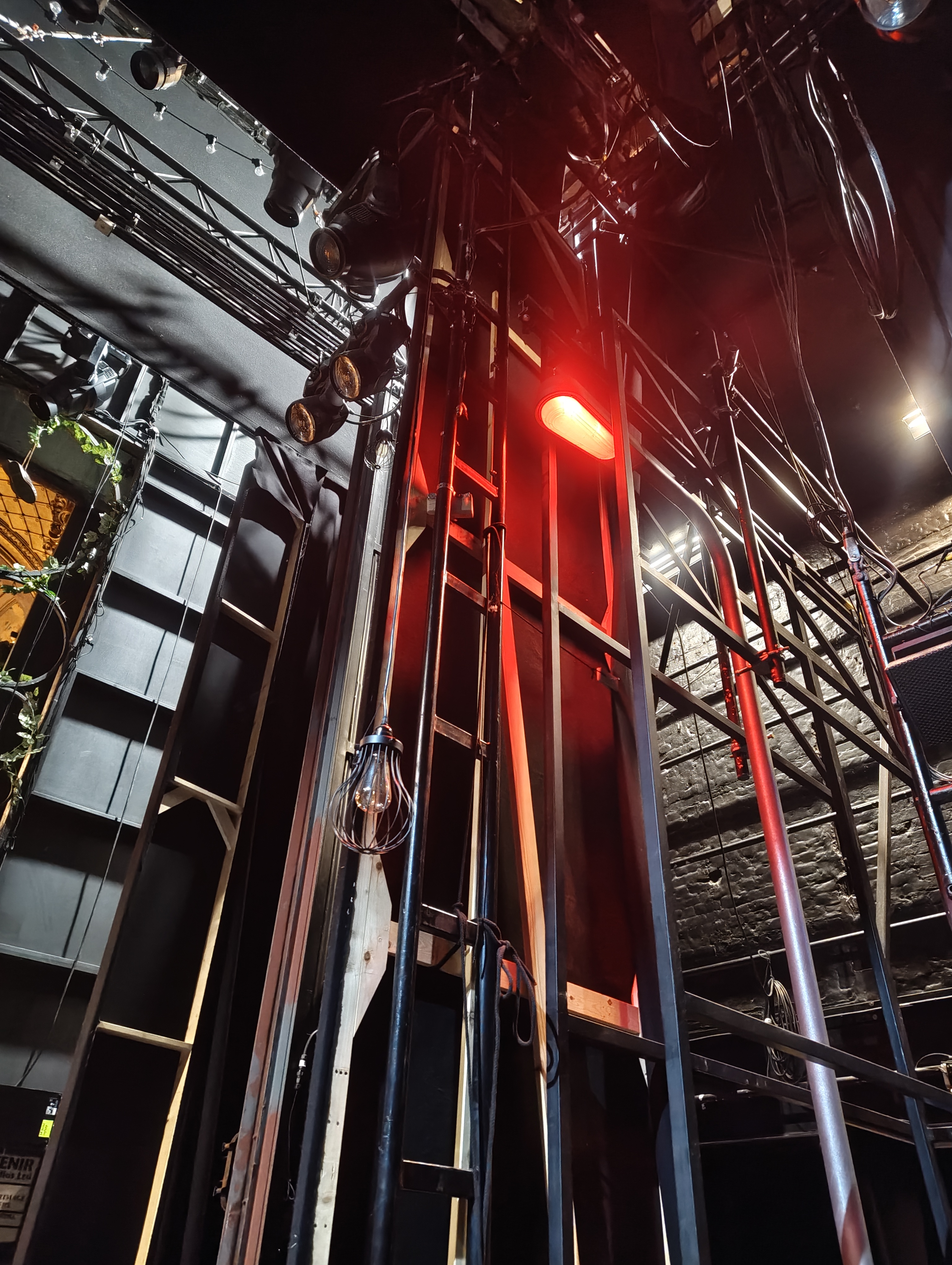

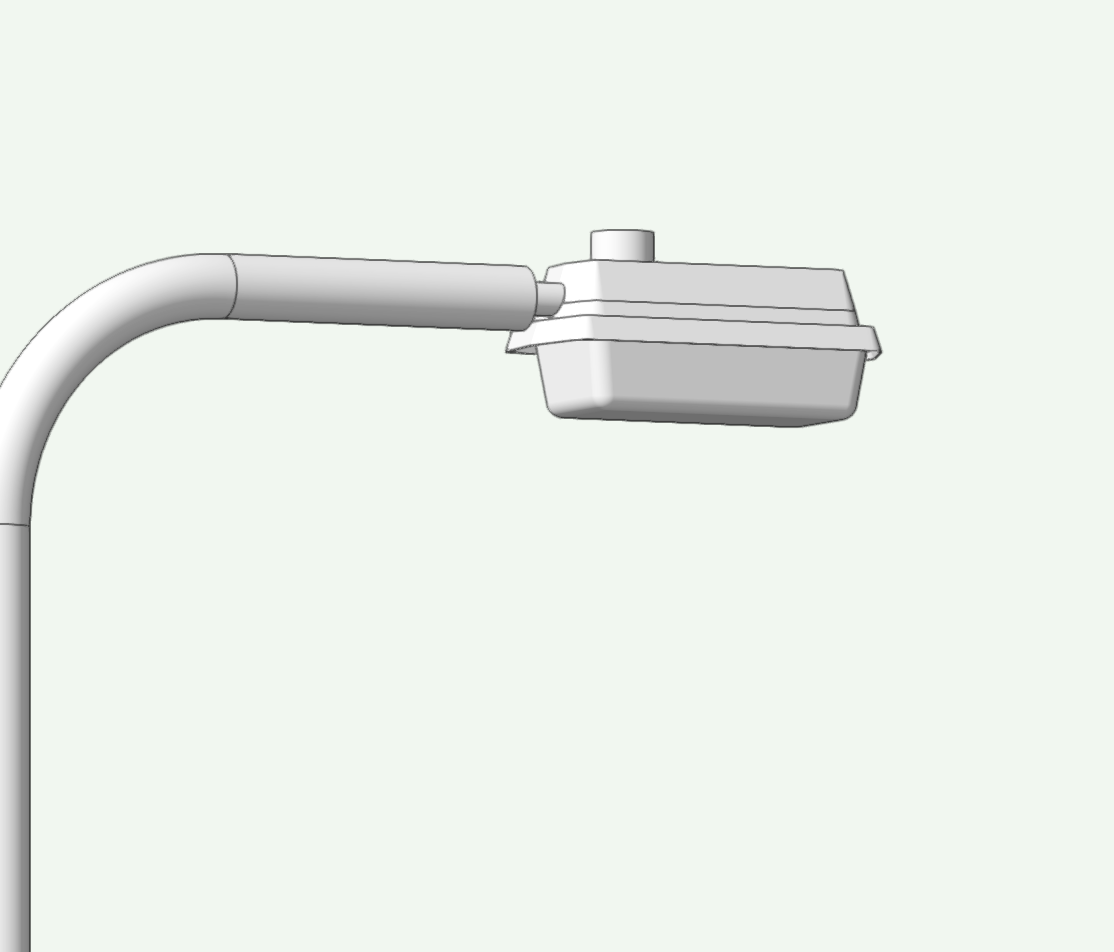

Images¶
Key Views¶
All Reference Photos (click to expand)
Usage¶
The Street Lamp is used in multiple scenes throughout the show, usually in a static warm white colour.
Scenes¶
- Campsite — pulled off before the storm
- Various other scenes
